DAMS-9000

Data Acquisition & Management System

  • Complies with the "Administrative Measures for Continuous Automatic Monitoring Facilities for Air Pollutants from Fixed Pollution Sources," ensuring that system operation and data processing fully meet relevant regulatory requirements.
  • According to regulations, the minimum deviation for raw data storage time must be within $\pm$ 2 seconds, while our SCADA system's data acquisition frequency can reach a minimum of 100 milliseconds.
  • Automatically determines operating statuses such as furnace start-up, shut-down, maintenance, and others, and calculates all necessary monitoring data and status codes based on regulations.
  • The system is designed to support data retention for at least six years, with regular backups to ensure data integrity and traceability.
  • Data processing logic and system parameters are independently segregated to comply with regulatory expectations for program transparency and long-term archiving procedures.
  • Comprehensively records all operational actions and user information to ensure compliance with regulatory requirements, and supports query and export functionalities.

Kinetics Product

As global attention to climate change and environmental protection increases, governments worldwide are strengthening controls on air pollutant emissions. The Continuous Emission Monitoring System (CEMS) for stationary sources has become a key tool for real-time monitoring and regulatory compliance.
With the rise of smart factories and Industry 4.0, CEMS is no longer just a regulatory tool but also a significant driver for corporate digital transformation. By integrating the Internet of Things (IoT), big data analytics, and artificial intelligence, CEMS provides entirely new insights into pollution monitoring, effectively optimizing operational efficiency, reducing environmental costs, and enhancing a company's corporate social responsibility (CSR) image.
Kinetics's DAMS-9000 data acquisition and management system, based on innovative technology and regulatory compliance, provides customers with efficient and reliable environmental data management solutions. Choose Ruipu Engineering, and let's create a smart future together!

System Features Introduction

Portal Page

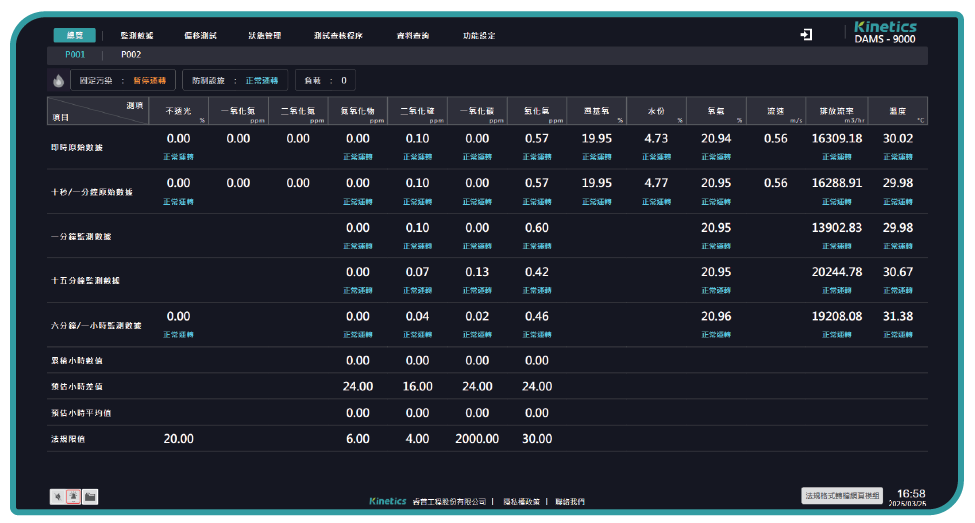

Data Overview
  • Data and Status Display
Monitoring Data
  • Real-time Raw Data
  • Real-time Historical Data
  • Data Reprocessing
  • Alarm Setting
  • System Flow Diagram

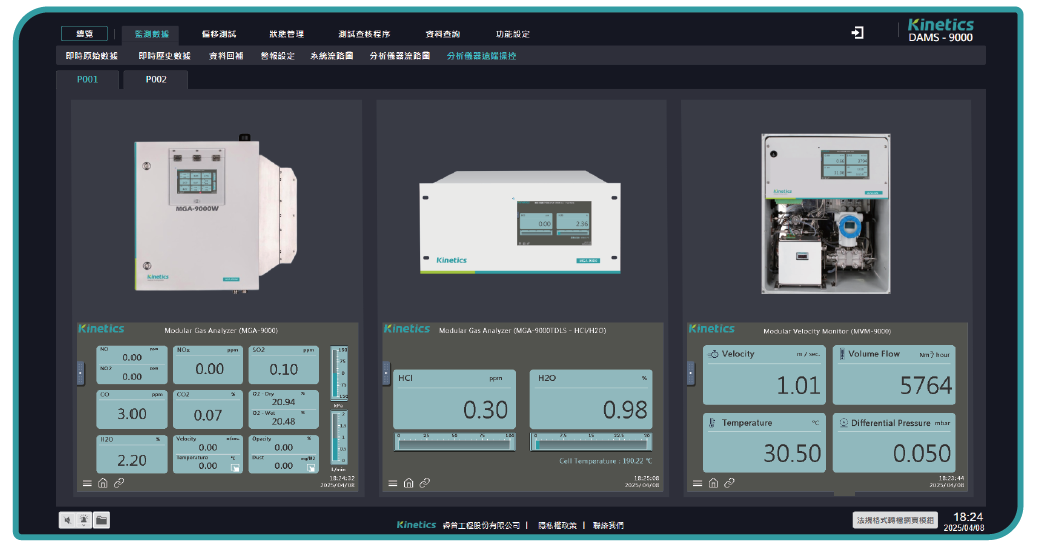

  • Analyzer
    Remote Control
  • Optional Below

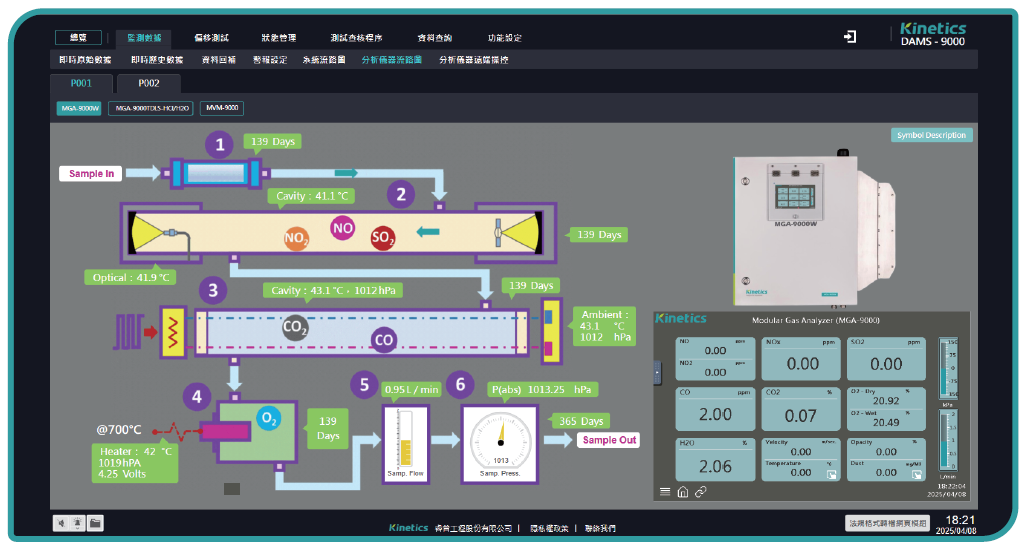

  • Analyzer Flow Diagram
Drift Test
  • Test Results
  • Procedure Setting
  • Standard Value Setting
Status Management
  • Stationary Source Status Setting
  • Data Status Setting
Test/Check Procedure
  • NO₂ Accuracy Test
  • Opacity Calibration Error Check
  • Relative Accuracy Check
Data Query
  • Opacity Dirt/Fouling Query
  • Historical Data Query
  • Drift Test Query
  • Instrument Parameter Query
  • Daily Report View
  • Monthly Report View/Edit
  • Operation Log Query
  • Optional Below
  • Cylinder Pressure Query
  • Customized Reports
Function Setting
  • Site Setting
  • Duct/Pipe Setting
  • Measurement Item Setting
Document Management ModuleOptional
Regulatory Format Conversion Web Module
Audit Module
