FT-9000
Modular FTIR Analyzer System

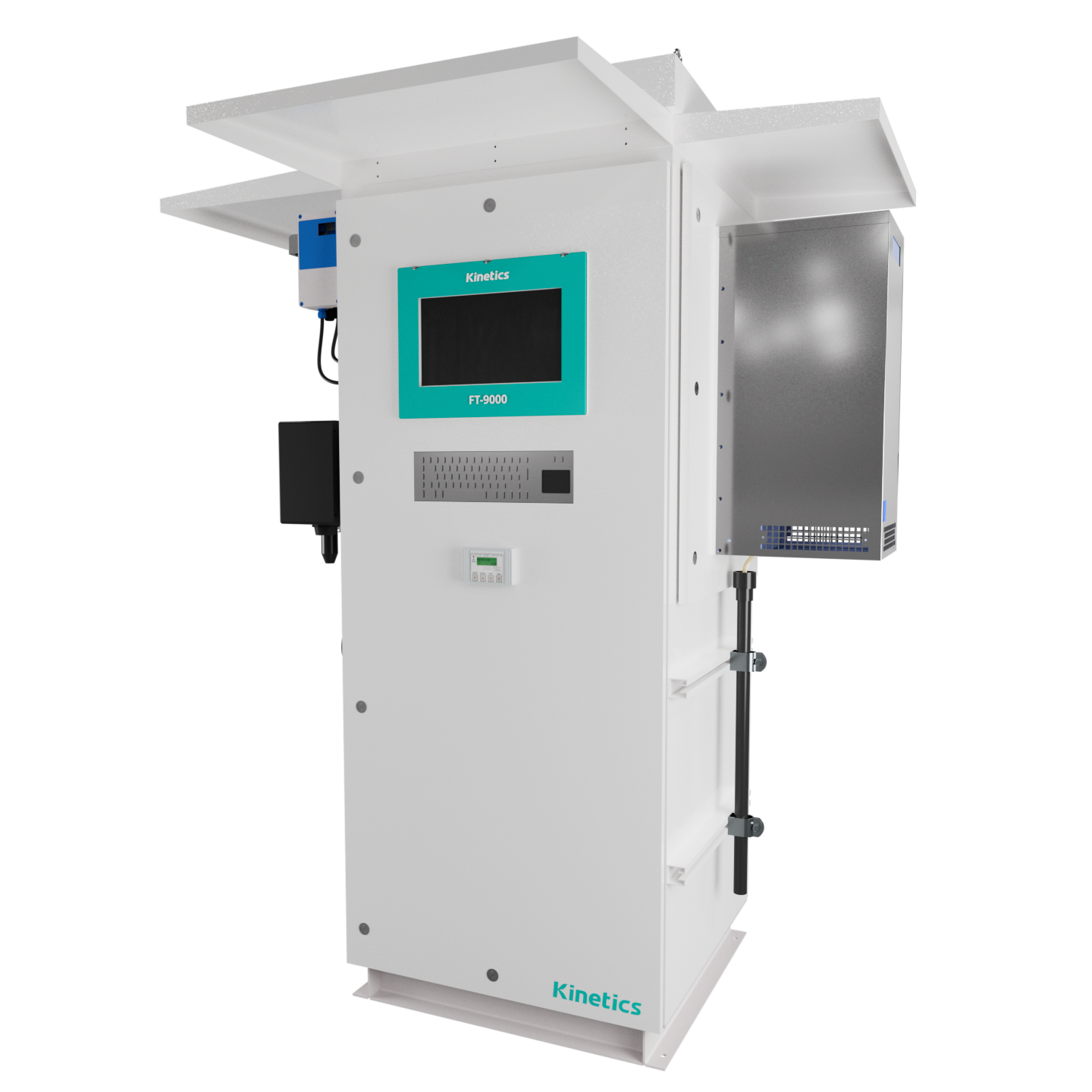

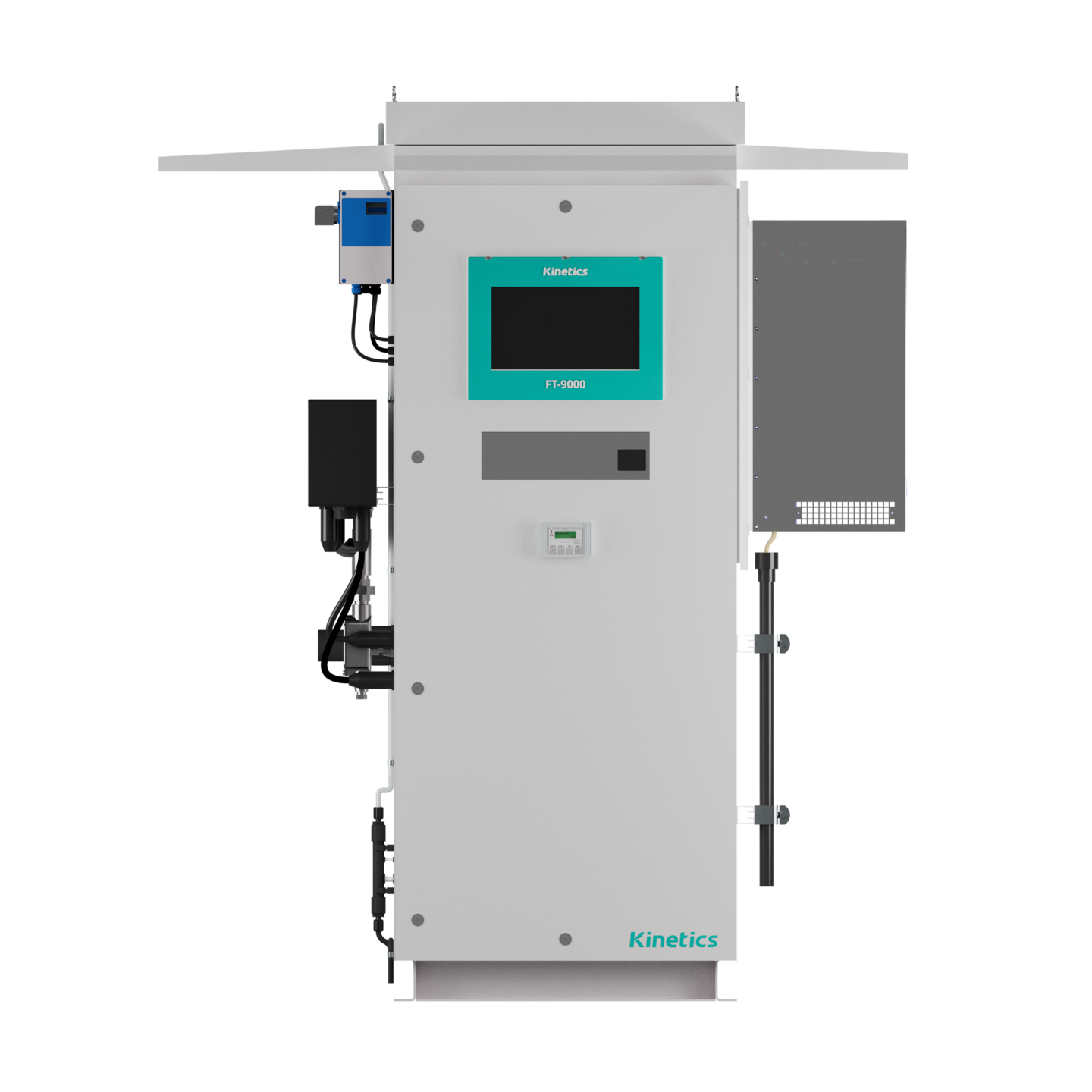

- Provides both indoor and outdoor (IP65 / NEMA4X) cabinet options as well as wall-mounted enclosures to cater to various environmental needs.
- Comes with an optional vortex cooler or electric wall-mounted air conditioner to ensure appropriate temperature regulation.
- Offers an optional explosion-proof certification from the Taiwan Labor Department (TS), ensuring the instrument's safe operation in potentially hazardous environments.

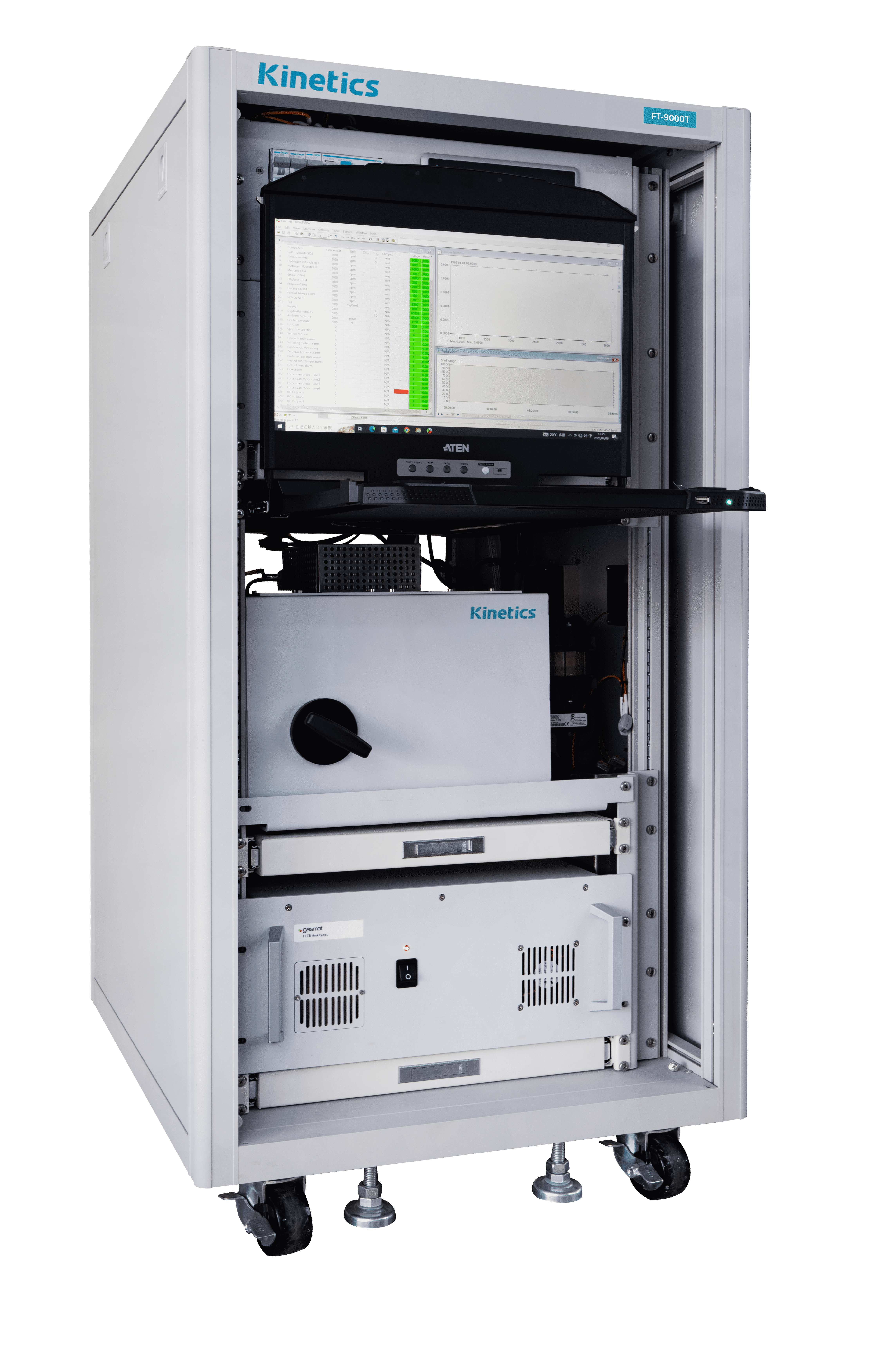

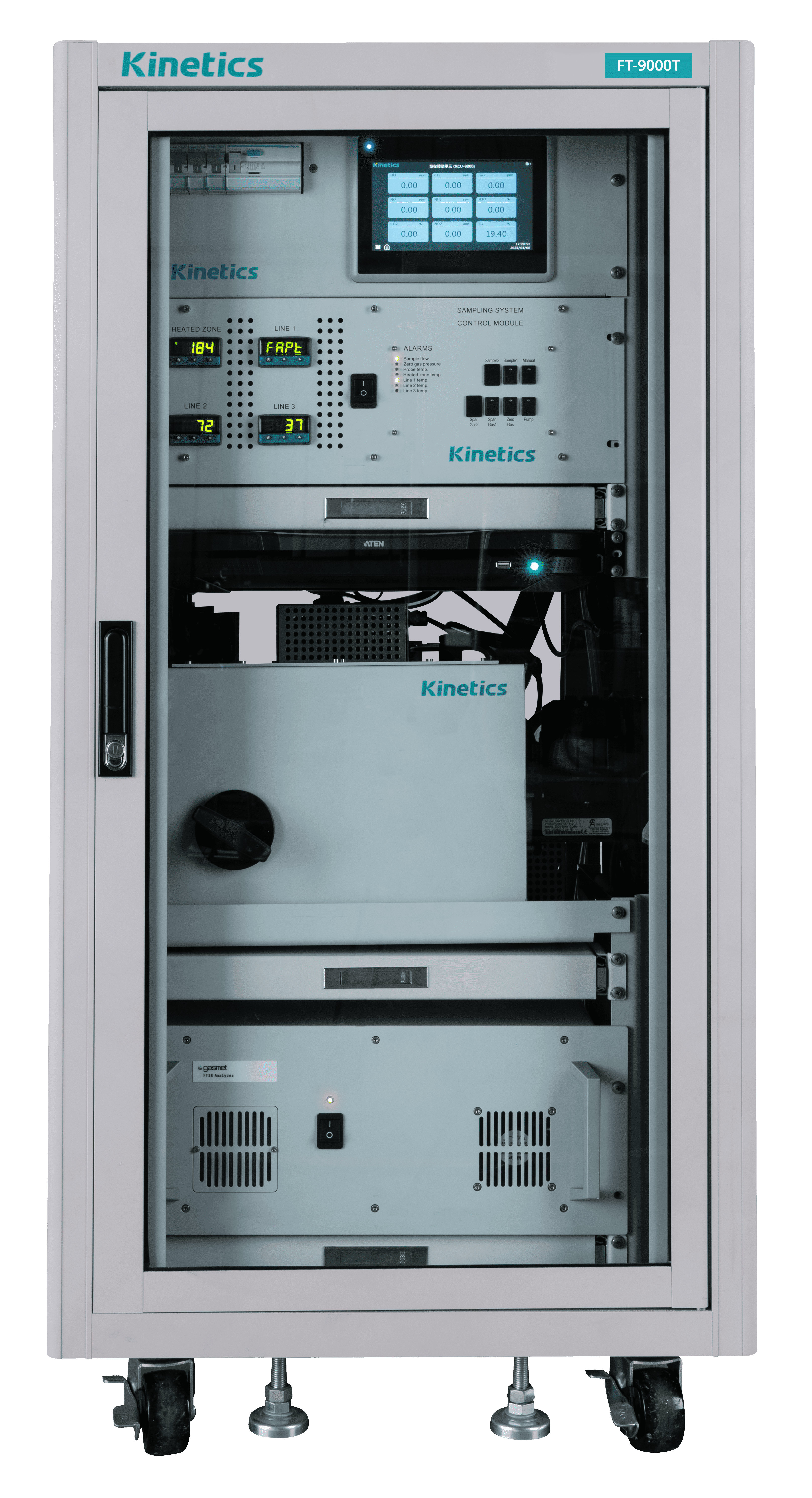

- Available with a transportable trolley design (FT-9000T) for ease of movement and installation.
- Features a modular design for ease of maintenance, reducing both cost and downtime.
- Boasts a user-friendly Human-Machine Interface (HMI) equipped with a color touch display for a straightforward operational experience.
- Supports standard CEMS applications or process measurements, catering to various application scenarios.
- CEMS Sampling Method: Incorporates a hot/wet extraction method, including a sampling probe, sample conditioning system, and an analysis chamber, ensuring accurate and reliable gas sample collection and processing.
- FTIR Technology: Employs Fourier Transform Infrared Spectroscopy for gas analysis, providing high precision and sensitivity.
- Automatic Zeroing: The system supports an automatic zeroing function, conducted at preset intervals, ensuring consistent measurement accuracy.
- Data Storage and Communication: The FT-9000 features extensive data storage capabilities for long-term measurement data retention. It also offers data communication interfaces such as Modbus, Ethernet, and USB for convenient data transmission and remote monitoring.
- Reliability and Stability: The FT-9000, built with high-quality components and an optimized design, ensures long-term stable operation and reliable measurement performance.
Kinetics Product
The FT-9000 is a modular CEMS system based on FTIR technology designed for environmental monitoring and process control. It is capable of simultaneously measuring up to 50 different gas parameters, including common gases such as H2O, CO2, CO, N2O, NO, NO2, SO2, HCl, HF, NH3, CH4, C2H6, C3H8, C2H4, C6H14, and CH2O, as well as components like Total Hydrocarbon Compounds (THC) and Nitrogen Oxides (NOX).
Technical Specification
Model FT-9000 General Measurement Principle Utilizes FTIR (Fourier Transform Infrared) technology based on infrared absorption spectroscopy. An optional MZOS-H ZrO2 oxygen measurement module is available Performance Simultaneously analyzes up to 50 gas component Operating Temperature 0 ~ 50 ℃, non-condensing Transport and Storage Temperature -20 ~ +60 ℃ T90Response Time Standard < 180 seconds (adjustable to 40 seconds) Temperature of FTIR Gas Chamber & Whole System 180 ℃ Standard Enclosure (Explosion-proof) Power Requirements 110 or 220VAC 60Hz (including probe and 20 meters heated sample line, approx. 7.5 kW) Dimensions Typical dimensions 2000 x 800 x 800 (mm) Weight Approx. 150 kg Explosion-Proof Certification Ex pz IIC T6 Gc, complies with Taiwan TS type certification, suitable for Zone 2 explosive areas Data Storage Data storage of over three years possible via USB stick or hard drive Regulatory Compliance Meets US EPA 40CFR Part 60 and Taiwan EPA CEMS requirements Standard Enclosure (Indoor Regular) Power Requirements 110 or 220VAC 60Hz (including probe and 20 meters heated sample line, approx. 7.5 kW) Dimensions Typical dimensions 1995 x 600 x 750 (mm) Weight Approx. 120 kg Data Storage Data storage of over three years possible via USB stick or hard drive Regulatory Compliance Meets US EPA 40CFR Part 60 and Taiwan EPA CEMS requirements Mobile Enclosure Power Requirements 110 or 220VAC 60Hz (including probe and 30 meters heated sample line, approx. 7.5 kW) Dimensions Typical dimensions 1290 x 650 x 750 (mm) Weight Approx. 100 kg Data Storage Data storage of over three years possible via USB stick or hard drive Regulatory Compliance Meets US EPA 40CFR Part 60 and Taiwan EPA CEMS requirements
