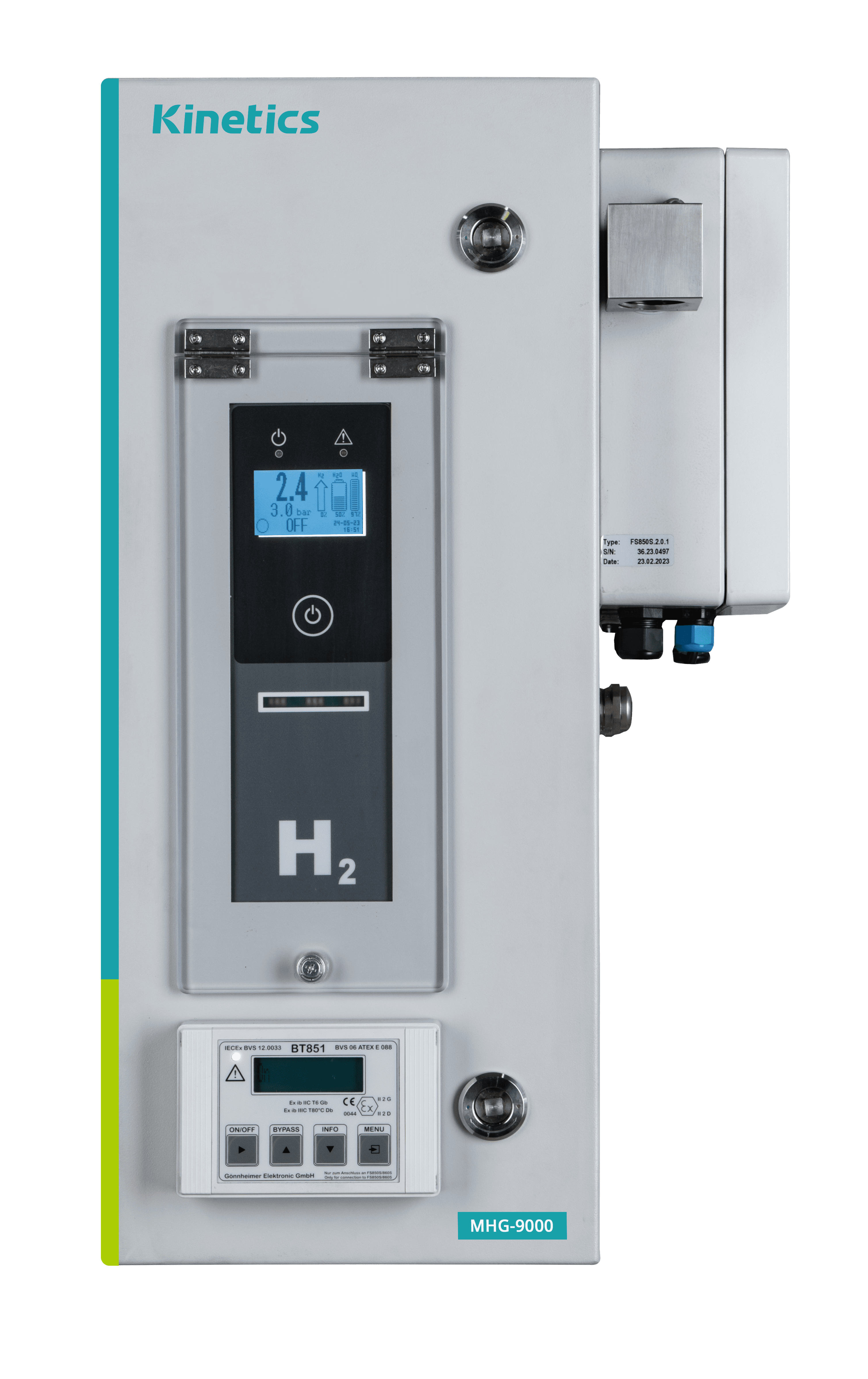

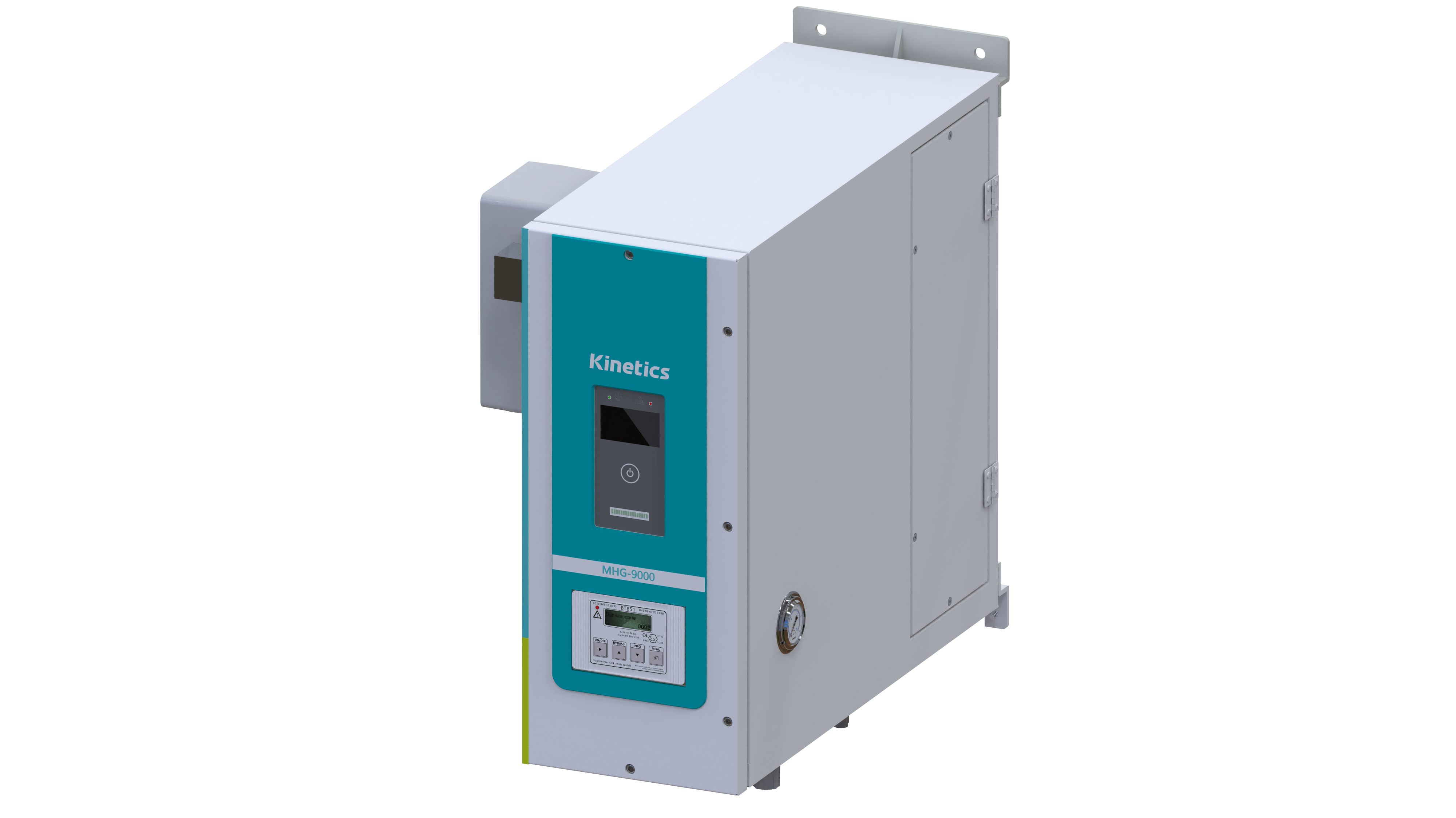

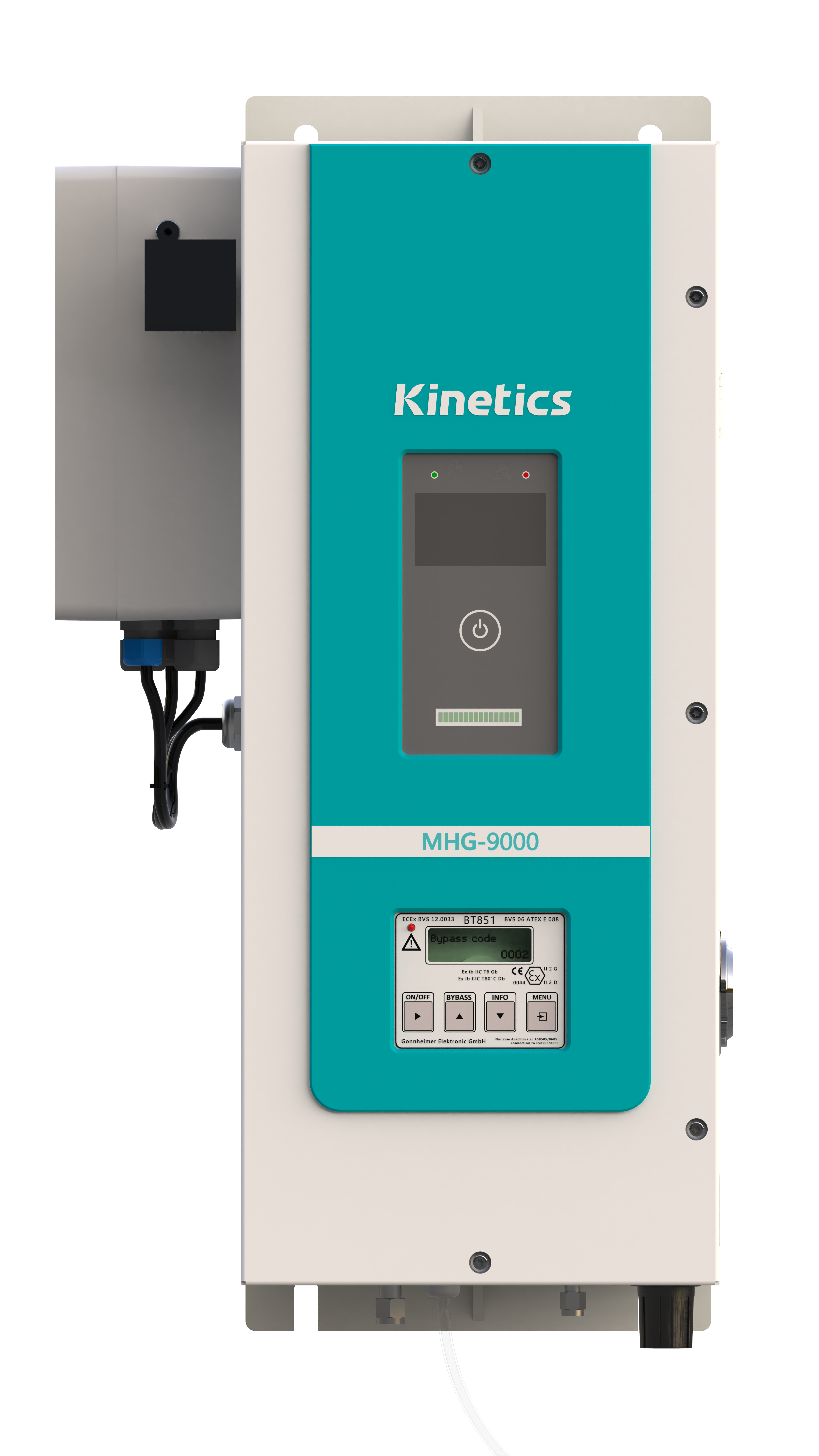

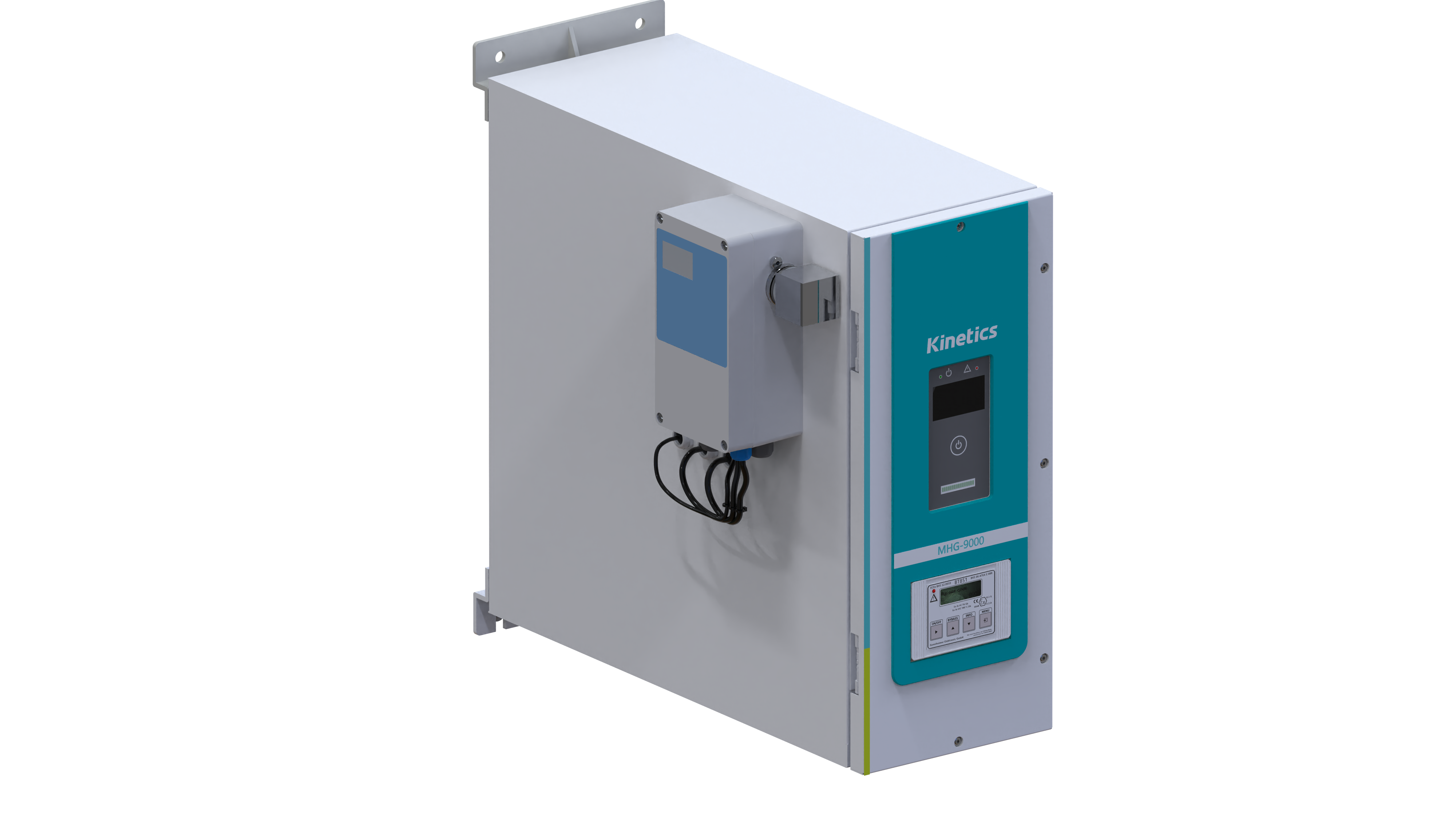

MHG-9000

Modular Ex-proof type Hydrogen Generator

  • Quick installation, easy to use, and maintenance-free.
  • Continuously delivers high-purity hydrogen at 99.9999% for 24 hours.
  • Automatic water refill feature with a low-water alert.
  • Easily replaceable deionized water filter for maintenance.
  • Hydrogen output is equipped with an additional drying tube to ensure hydrogen purity.
  • Multiple safety measures, including a hydrogen detector, offer comprehensive protection.
  • Comes standard with RS485 and USB interfaces, with optional wireless and remote network operation.

Kinetics Product

Modular Hydrogen Generator MHG-9000 is based on PEM (Polymeric Membrane) electrolysis technology to produce up to 600 cc/min of hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). MHG-9000 is ex-proof TS certified for Ex Zone 2 IIC Area. meets all brands of online GC's requirements. Compare to traditional gas cylinder, MHG-9000 not only saves the storage space and time to replace those cylinders, but it also provides safer working environment by integrated fail-safe measures to prevent massive leakage of hydrogen. All operations can be performed on touch screen easily. MHG-9000 Modular Ex-Proof Hydrogen Generator is a game-changer for clients, unlocking new heights in work efficiency and safety. This innovative product not only streamlines clients' workflow but also brings unprecedented flexibility and convenience. With its powerful technology and user-friendly design, the MHG-9000 creates a more efficient and safer working environment for clients. It stands as an indispensable ally in achieving business success. Opting for MHG-9000 means embarking on a journey towards a new work efficiency and safety era.

Technical Specification

Model MHG-9000
Principle
Electrolytic Cell Polymeric membrane (PEM) technology
H2 purity > 99.9999%
H2 flow rate (ml/min) Up to 600 (ml/min)
Gas outlet pressure 10 bars (145 psi)
General Information
Enclosure dimension(H*W*D) 550 x 325 x 637 mm
Enclosure weight Approx. 30 kg
Enclosure material 304SS with standard painting
Power Supply 100 ~ 240 VAC, 50/60 Hz
Power Consumption 500 W
Operating Temperature 45 ℃ max
Relative Humidity 95% non-condensing
Explosion Proof Ex px IIC T6 Gb
