MSCS-8000

Modular Sample Conditioning System-Permeation Cooler Type

  • Compact design
  • Clear indication and label for sample condition
  • Easy operation
  • Rapid swap and repair in workshop
  • Designed to help users achieve the current Taiwan EPA regulation – at least 95% system uptime
  • Low initial installation and operational costs
  • Low operating noise
  • Efficient cooling method, with options for permeation dryer tubes or heated O₂ sensors based on user needs

Kinetics Product

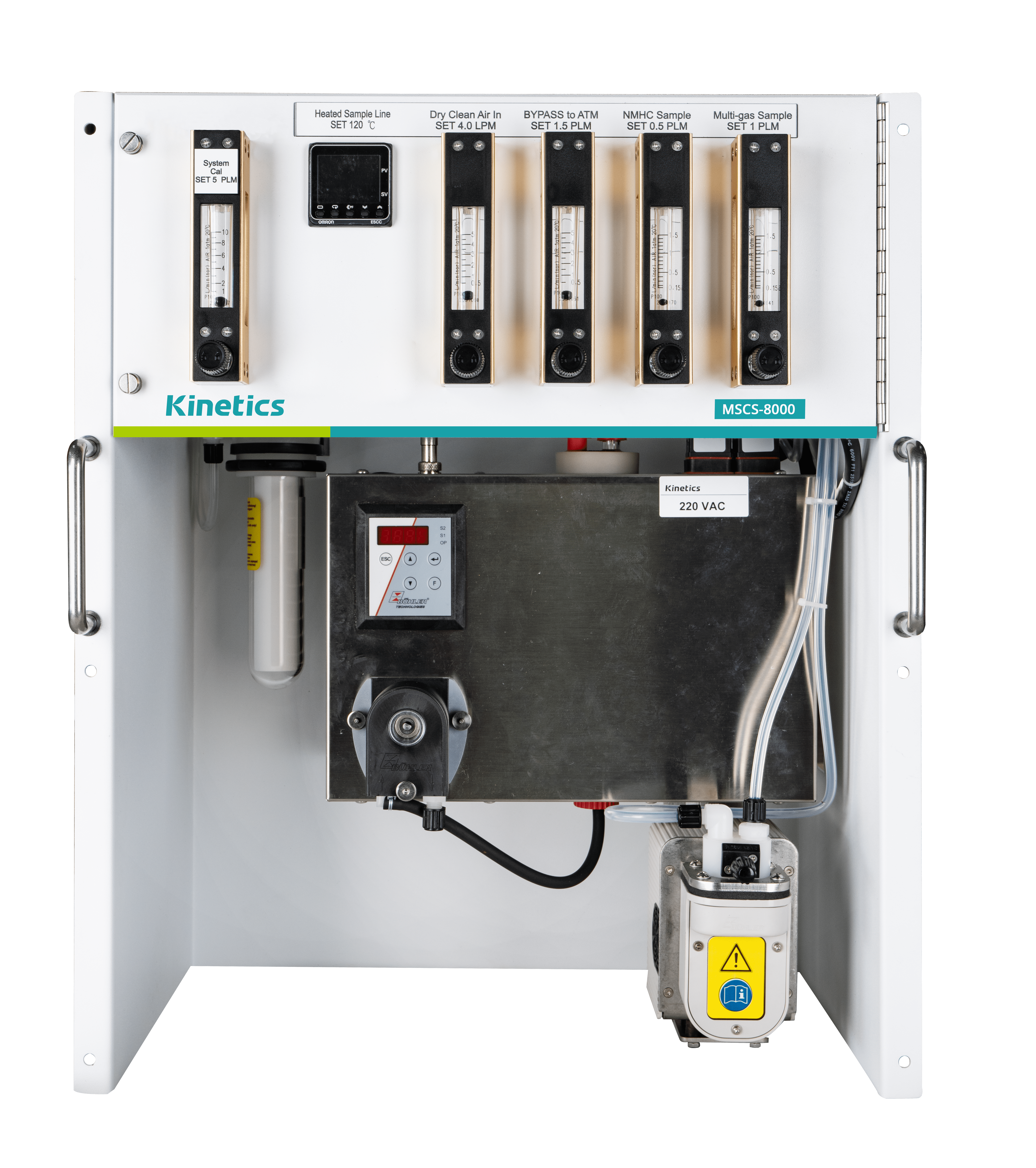

The MSCS-8000 is a modular sample conditioning system tailored for both standard 19" rack-mounted and wall-mounted applications. This system is adaptable to a variety of analyzers, including but not limited to the MGA-9000, NMHC-9000, and other third-party analytic instruments for front-end sample preparation. With the primary objective of ensuring long-term reliable operation and protection of analytical instruments, the MSCS-8000 specializes in pressure, temperature, and flow rate adjustments. It removes excessive moisture from the system and offers optional functional modules, such as permeation dryer tubes or heated O2 sensors, to cater to specific customer requirements.

Technical Specification

Model MSCS-8000
General
Housing design 19" rack mounting or Wall-mounting (IP65)
Dimensions (H x W x D) 19" rack : 576 x 485 x 470mm
Wall-mounting : 600 x 500 x 300 mm
Weight

19" rack : approx. 20 kg

Wall-mounting : approx. 30 kg

Power Supply 110 or 220 VAC, 50/60 Hz
Power Consumption 420 VA
Climate Requirements
Ambient Temperature 5 ~ 60℃
MZOS-H Zirconia (ZrO2) Oxygen Sensor (Optional)
Principle Zirconium Oxide
